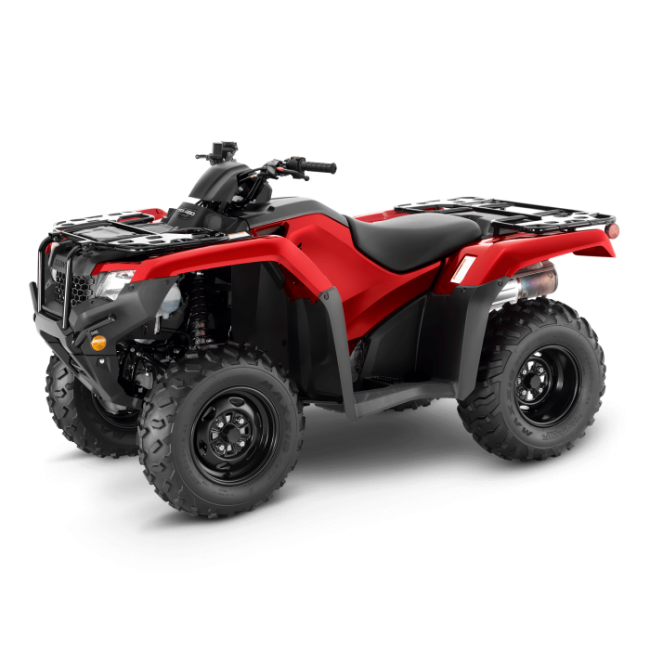

TRX420TM1

THE HARDWORKING FARM HAND

PATRIOT RED
OVERVIEW

TRX420TM1

If you want a farm-hand that will pull its weight, and then some, this ATV is perfect for you. The TRX420TM1 is the larger-powered brother of the TRX250TM. A Honda through-and-through it is trusty, reliable, and a two-wheel worker that will do more than just drive your flat-terrain farm.

The big 420cc fuel-injected, OHV liquid-cooled engine boasts enough pulling power to tow a decent trailer or gallivant with a bit of gear. Its 5-speed manual transmission gives you excellent control, and the ability to ride exceptionally slow in first gear and reverse. That means you can follow your stock at their pace, or whatever pace you decide. Without a doubt this is one tough, no-frills Rancher, that will get more than just one job done.

BOOK A TEST RIDE

GALLERY

TRX420TM1

WHY CHOOSE A HONDA

WHY CHOOSE A HONDA


For over 40 years Honda has been a fixture on farms around New Zealand. With a range of products designed for New Zealand conditions you can rest assured that no matter the task your Honda is up for it.

Simply click on one of the buttons below to hear real stories from real Honda customers or check out just some of the great benefits of using a Honda on farm in New Zealand.

CUSTOMER STORIES HONDA BENEFITS

FEATURES

TAKE A CLOSER LOOK

/10

HONDA RIDER FINANCE

HONDA RIDER FINANCE


Honda proudly partners with UDC to offer a great range of finance options. Talk to your Honda dealer today to find the best finance solution for your needs. We can help finance you into your new Honda whether you are looking at a new ATV, Side by Side, Off-road Bike, Road Bike or Scooter.

FIND OUT MORE
SPECIFICATIONS

YOUR BIKE IN DETAIL

TRX420TM1
Engine
Engine Type Liquid-cooled OHV longitudinally mounted single-cylinder four-stroke
Displacement (CC) 420cc
Bore and Stroke 86.5mm x 71.5mm
Ignition Full-transistorized type with electronic advance
Fuel System Programmed Fuel Injection
Transmission
Starter Electric with auxiliary recoil standard
Gearbox 5-Speed with Reverse
Wheels, Suspension & Brakes
Suspension Front Independent double-wishbone; 170mm travel
Suspension Rear Swingarm with single shock; 170mm travel
Brakes Front Dual hydraulic discs
Brakes Rear Sealed mechanical drum
Tyres Front Maxxis 24 x 8-12
Tyres Rear Maxxis 24 x 10-11
Dimensions & Weight
Wheelbase 1,268mm
Seat Height 856mm
GroundClearance 183mm
Kerb Weight 261kg
Fuel Capacity 14.7 litres including 4.9 litres reserve
Dimensions 2,103mm(L) x 1,205mm(W) x 1,174mm(H)
