CMX500 REBEL

EXPRESS YOUR INDIVIDUALITY

MILLENNIUM RED
GRAPHITE BLACK
MATTE SILVER METALLIC
OVERVIEW

REBEL

Raw, aggressive styling and a narrow, sexy frame. Everything you need and nothing you don’t, the Rebel comes loaded with attitude from fender to fender. Blacked-out and stripped down quality components around a rising fuel tank deliver its signature aggressive stance and a fat tyre provides a powerful presence.

FEATURES

TAKE A CLOSER LOOK

/10

SPECIFICATIONS

YOUR BIKE IN DETAIL

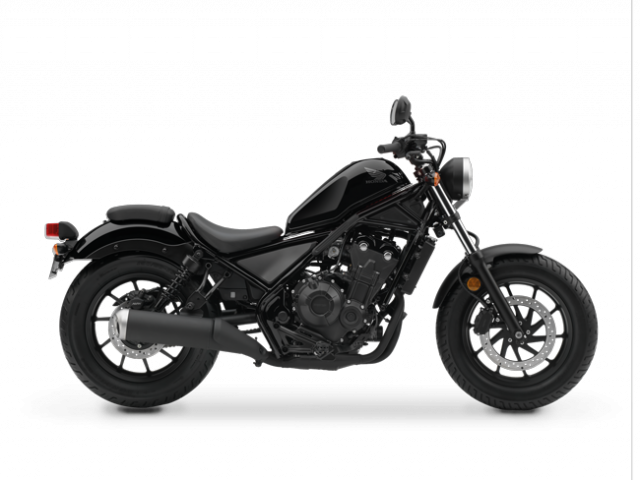

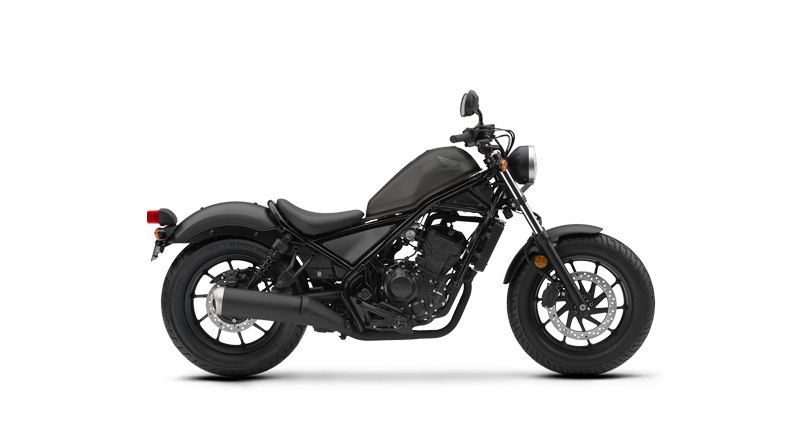

CMX REBEL
Engine
Engine Type Liquid-cooled DOHC parallel-twin 4-stroke
CC Rating 475cc
Bore and Stroke 67.0mm X 66.80
Ignition Computer-controlled digital transistorized w/ electronic advance
Compression Ratio 10.7:1
Transmission
Starter Electric
Gearbox 6 Speed
Wheels, Suspension & Brakes
Suspension Front 41mm Telescopic
Suspension Rear Showa with Pro-Link system
Brakes Front 264mm Hydraulic disc
Brakes Rear Single piston Rear
Tyres Front 130/90-16MC
Tyres Rear 150/80- 16MC
Rake Caster Angle 28 °
Dimensions & Weight
Wheelbase 1,488 mm
Seat Height 690mm
GroundClearance 136mm
Trail 110 mm
Kerb Weight 190kg
Fuel Capacity 11.2 litres
Dimensions 2,188 X 820 X 1,094 mm
