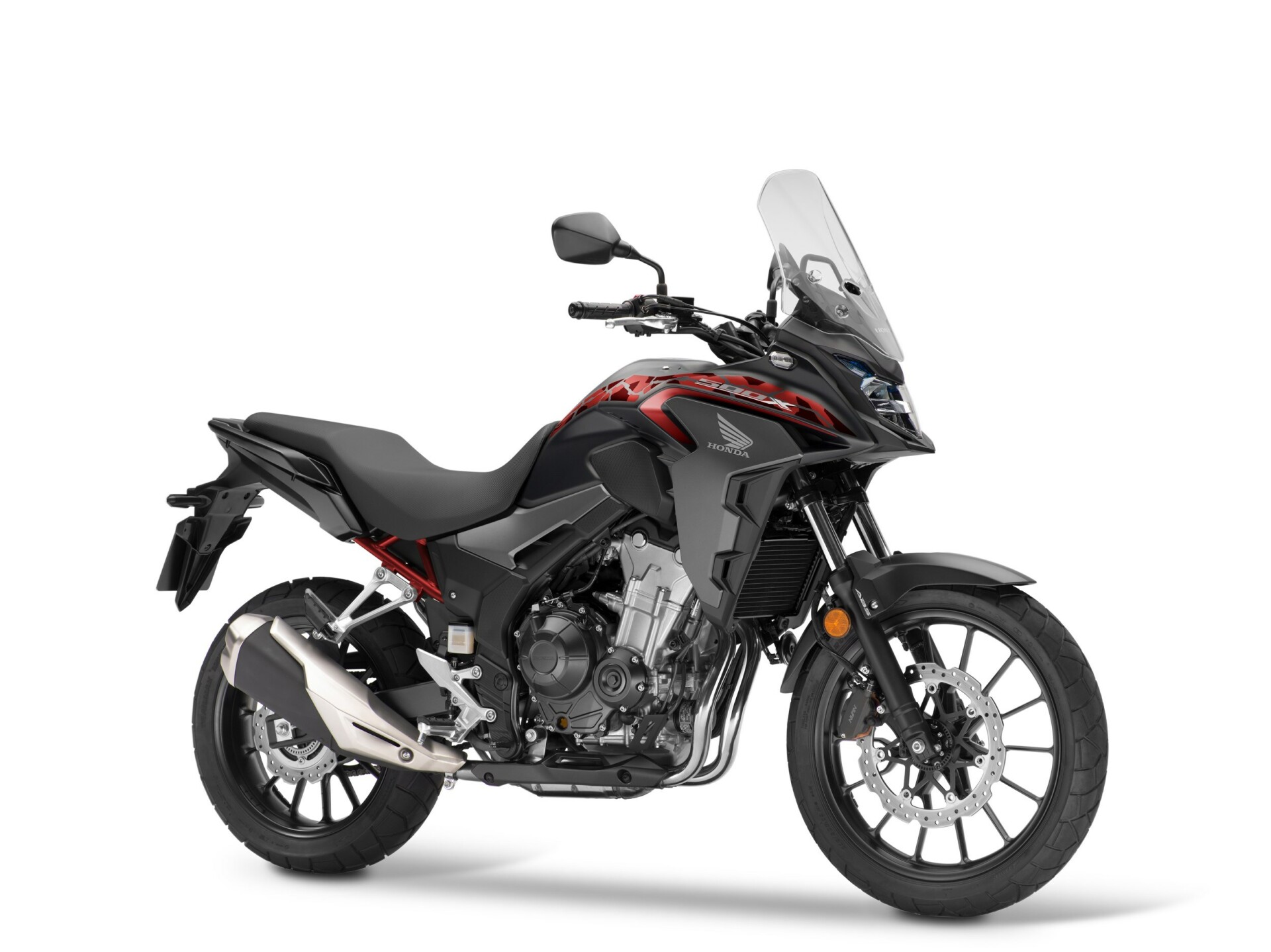

CB500XA
From urban commuter to weekend explorer – the latest CB500X is ready for anything. Its styling is much sharper - with a harder adventure edge, taking cues from the Africa Twin, and is complemented by longer travel suspension, high-specification single-tube shock absorber, enhanced rider ergonomics and a 19-inch front wheel.
And while the CB500X’s engine maintains the 35kW peak output, it now makes 4% more power and torque between 3-7,000rpm, thanks to revisions to the inlet, exhaust and valve timing. The new dual-exit exhaust muffler features an enhanced exhaust note and the engine now also features an assist/slipper clutch. New LCD instruments include a Shift Up and Gear Position indicator, and the indicators are LED to match the rest of the lighting.
TAKE A CLOSER LOOK
YOUR BIKE IN DETAIL
| Engine Type | Liquid-cooled DOHC Parallel Twin |
| Displacement (CC) | 471cc |
| Bore and Stroke | 67mm X 66.8mm |
| Compression Ratio | 10.7:1 |
| Ignition | Full-transistorized type |
| Fuel System | PGM-FI, Electronic Fuel Injection |
| Starter | Electric |
| Gearbox | 6 Speed |
| Final Drive | Chain |
| Suspension Front | Conventional Telescopic, 41 mm, Pre load adjustable |
| Suspension Rear | Pro-link mono with 9 stage Preload adjuster |
| Brakes Front | Single two-piston caliper w/ 320mm petal-style disc; ABS |
| Brakes Rear | Single one-piston caliper w/ 240mm petal-style disc; ABS |
| Tyres Front | 120/70ZR – 19 M/C (On-Off Pattern) |
| Tyres Rear | 160/60ZR – 17 M/C (On-Off Pattern) |
| Rake Caster Angle | 27° 27’ |
| Wheelbase | 1,443mm |
| Seat Height | 834mm |
| GroundClearance | 181mm |
| Kerb Weight | 197kg |
| Fuel Capacity | 17.7 litres |
| Dimensions | 2,156mm(L) x 828mm(W) x 1,412mm(H) |
