BUILT TOUGH FOR NZ FARMS

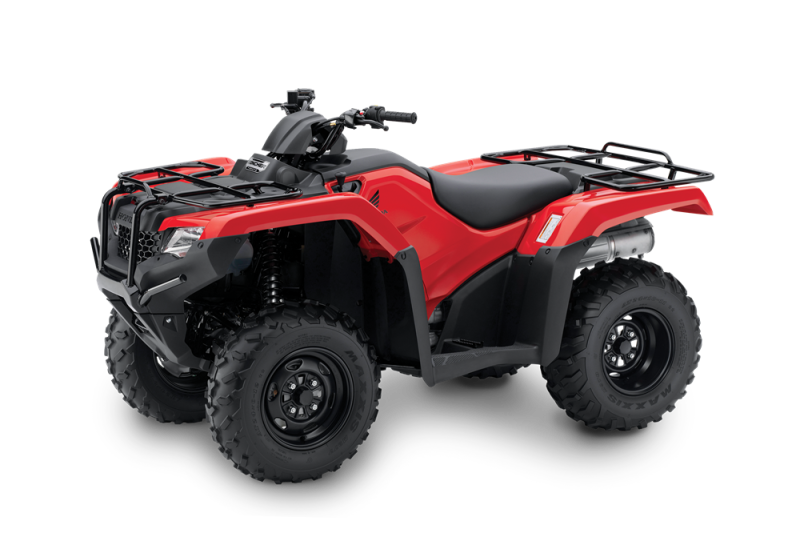

The TRX420FM2 is one of New Zealand’s favourite ATVs for a reason. It has all the great features of the FM1 model with the addition of power steering. The Electronic Power Steering (EPS) system uses the latest technology, incorporating Electronic Computer Unit (ECU) mapping for improved linearity in steering response and reduced low-speed steering effort for enhanced manoeuvrability. The increased kickback resistance provides better all-around steering action and control over rough terrain.
Elsewhere, the stiffness of the double-cradle steel frame allows for precise handling and 170mm of travel in both the front and rear suspension systems ensures a plush and controlled ride. The storage compartment on the front of the bike and carry racks which provide more loading options. New guards extending the full length of the lower suspension arms provide full coverage of the driveshaft and outboard CV joints. This is one tough, economical and capable ATV.
YOUR BIKE IN DETAIL
|Engine Type||Liquid-cooled OHV longitudinally mounted single-cylinder, 4 stroke|
|Bore and Stroke||86.5mm x 71.5mm|
|Ignition||Full-transistorised with electronic advance|
|Fuel System||Programmed Fuel Injection (PGM-FI) 34mm throttle body|
|Starter||Electric with auxiliary recoil standard|
|Final Drive||Direct front and rear driveshafts with torque sensing front differential|
|Transmission||Manual 5-speed with reverse|
|Suspension Front||Independent double-wishbone; 170mm travel|
|Suspension Rear||Swing arm with single shock; 170mm travel|
|Brakes Front||Dual hydraulic - 190mm discs|
|Brakes Rear||Single sealed - 160mm mechanical drum|
|Tyres Front||24 x 8 - 12|
|Tyres Rear||24 x 10 - 11|
|Fuel Capacity||14.7litres including 4.9litres reserve|
|Dimensions||2,104mm(L) x 1,205mm(W) x 1,174mm(H)|
|Carrier Capacity||30kg Front rack - 60kg Rear rack|
TAKE A CLOSER LOOK
TEST RIDE A TRX420FM2
Had enough reading and want to get riding? Book a test ride using the form below to experience a Honda for yourself. Just select your local dealer, fill in your details and we'll have you on the road in no time.
WHY CHOOSE A HONDA
For over 40 years Honda has been a fixture on farms around New Zealand. With a range of products designed for New Zealand conditions you can rest assured that no matter the task your Honda is up for it.
Simply click on one of the buttons below to hear real stories from real Honda customers or check out just some of the great benefits of using a Honda on farm in New Zealand.
HONDA RIDER FINANCE
Honda proudly partners with UDC to offer a great range of finance options. Talk to your Honda dealer today to find the best finance solution for your needs. We can help finance you into your new Honda whether you are looking at a new ATV, Side by Side, Off-road Bike, Road Bike or Scooter.
