Full of Honda technology and features like a liquid-cooled 700-class engine, double wishbone front-suspension, and durable automotive-style automatic transmission that can be switched to full manual mode. With the flexibility of 2, 3, or 4 person seating capacity, but with the manoeuvrability of a short wheel base, the Pioneer 700-4 is the ultimate do-it-all vehicle. Best of all, it’s designed, developed, and expertly built to withstand Kiwi conditions.
Our latest updates offer big Improvements in the cab including added storage (almost twice the storage of the previous model), new tilt steering wheel for easy access and larger cup holders. The updated dash switch panel and an LCD screen that's twice the size of the previous makes viewing important info easy.
Updated Electronic power steering increases torque assist by more than 25%, improves handling, and features a "return to centre" function that improves responsiveness and reduces steering effort. The new radiator-fan vent, increased frame strength-to-weight ratio, and revised front and rear driveshaft boots improve puncture resistance.
Versatility is the defining feature of the Pioneer 700-4P, and nothing illustrates that better than our industry-exclusive QuickFlip® seating system. Switch between 2-person mode with full cargo and tilt bed functionality, to 3-person mode, to 4. Seats lay flat in the bed, and pop up in an instant whenever you need them.
Features
Rugged 675cc Liquid-Cooled Engine
Prepare to go further than ever before. Our refined chassis enables you to tackle terrain others would shy away from, with larger tyres, long-travel independent front and rear suspension, and huge ground clearance. The rubber-mounted engine and exhaust system helps insulate against excessive vibration for an improved riding experience.
TRAXLOK®
Our rock-solid TraxLok system lets you select either 2WD or 4WD, giving you the freedom to choose between lighter steering (in 2WD) and maximising available traction (in 4WD) when you need it most.
Powerful Brakes
Mud, turf, gravel – you can handle every bit of it with confidence and still stop with confidence. Our triple-disc brakes feature a patented scraper system that helps prevent debris buildup between caliper and rim. 200mm discs in the front, and lighter, 170mm inboard-mounted disc in the rear deliver stellar stopping power.
Independent Suspension Front & Rear
The Pioneer 700’s fully independent double-wishbone front and rear suspension means you get a smooth ride, especially over rough terrain.

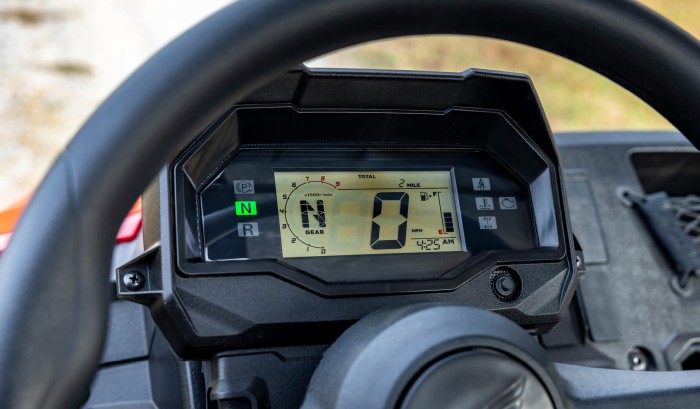

Easy to Read Digital Display
Our Pioneer 700’s instrument display features an LCD screen that’s twice the size of the previous unit with larger text. It also has a Trip B function as well as a battery-voltage readout and a tachometer array. The whole unit tilts along with our tilt wheel too, making it easier to read.
Tilting Steering Wheel
Standard on all Pioneer 700 models, adding a tilt feature to the steering wheel makes getting in and out a lot easier. The instrument pod tilts with the wheel, too.
Strong Gearbox
Unlike the belt-drive automatics out there, the Pioneer 700 features a transmission that uses rugged, steel gears. You get true compression braking for superior controllability (especially when descending hills), as well as long transmission life.
Passenger Protection
Staying safe is essential, both at work and when having fun. That’s why the Pioneer 700-4 is equipped with an Occupant Protection Structure, using large-diameter tubing and meeting the ISO rollover protection standard. Plus, we increased the tubing thickness to make it even stronger, and gave the structure new hip bars to make getting in and out easier. In the cabin, integrated handrails, recessed top tubes, and automotive-style three-point seatbelts with emergency locking retractors help keep passengers securely in place.
More Room To Store
All our Pioneer 700 models feature generous dash storage and a secure cargo net. In the cabin, a convenient 9.6-litre glove box holds your essentials and keeps them dry. The water-resistant door helps prevent the elements from getting inside, while the in-dash design provides good storage space, without compromising on passenger legroom.
Towing Capacity
Sometimes you need to tow things. Like, up to 680 kilos of things. So we gave the Pioneer 700 a robust towing capacity - strong enough to handle some of those jobs you'd normally use a tractor for.
Longitudinally Mounted Engine
By orienting the crankshaft front to back in the chassis in our ATV and side-by-side engines, we route the flow of power straight to the wheels without any unnecessary right-angle detours, reducing powertrain friction and putting more grunt to the ground.
Tilt/Dump Bed
With the cargo bed’s large capacity (over 450kg) and durable construction, we've made hauling heavy loads easy. So it makes sense that we'd make dumping the load easy too. Thanks to the smartly-designed hydraulic assist strut, you can tilt the bed and dump the cargo, even with one person.
Honda Automatic Transmission
A vehicle this versatile demands a transmission that’s ready for anything, as well as our famous Honda reliability. With a heavy-duty torque converter and three hydraulic clutches, you get smooth shifts, a steady stream of power, and engine braking. Meanwhile, the two-stage shift map further optimises power and torque delivery, even at higher RPM ranges.
649 kg (Includes all standard equipment, required fluids and full tank of fuel)
Fuel Capacity
30 litres (Including 4.5 litre reserve)
Length
2915 mm
Width
1522 mm
Height
1980 mm
Towing Capacity
680 kg
Rear Carrier Capacity
454 kg (With hydraulic assist lever)
