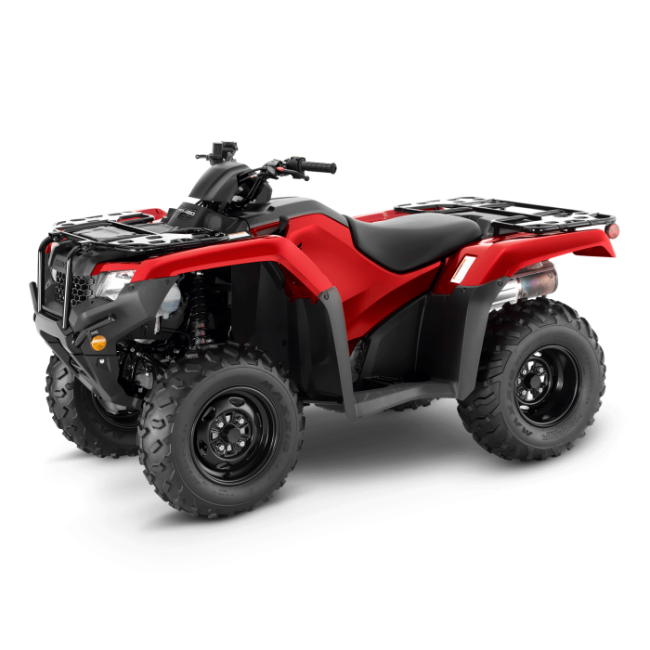

TRX420FM1
One of Honda’s most loved ATVs, the TRX420FM1 sets the benchmark for rugged durability. With a reliable and economical 420cc engine this 4WD manual makes easy work of hilly terrain. Throttle response and economy are helped by the latest version of Honda’s Programmed Fuel Injection (PGM-FI) system.
The TRX420FM1 has carry racks, with a built in front storage component perfect for storing keys, a phone, or similar you need to keep safe. It’s equipped with a double-cradle steel frame designed for precise handling and a smooth ride without compromising strength. 170mm of travel in both the front and rear suspension systems ensures a plush and controlled ride, and guards extending the full length of the lower suspension arms provide full coverage of the driveshaft and outboard CV joints which helps protect the running gear of the bike further improving the durability of this model!
-
4 WD
-
Longitudinally Mounted Engine
-
Solid Rear Axle
Features
Programmed Fuel Injection
Easy starting, impressive throttle response and great fuel economy are delivered by the latest version of Honda’s Programmed Fuel Injection (PGM-FI) system.
| Engine Type | Longitudinally mounted liquid-cooled OHV single cylinder four-stroke |
| Engine Displacement | 420 cc |
| Bore and Stroke | 86.5mm x 71.5mm |
| Ignition | Full transistorised with electronic advance |
| Fuel System | Programmed fuel injection(PGM-FI) - 34mm throttle body |
| Starter | Electric with auxiliary recoil |
| Final Drive | Direct front and rear driveshafts with torque sensing front differential |
| Transmission Type | Manual 5-speed with reverse |
| Suspension Front | Independent double wishbone |
| Front Wheel Travel | 170 mm |
| Suspension Rear | Solid axle swingarm with single shock |
| Rear Wheel Travel | 170 mm |
| Brakes Front | Dual hydraulic 190mm discs |
| Brakes Rear | Single sealed 160mm mechanical drum |
| Tyres Size Front | 24 x 8 - 12 |
| Tyres Size Rear | 24 x 10 - 11 |
| Wheelbase | 1269 mm |
| Ground Clearance | 181 mm |
| Seat Height | 854 mm |
| Kerb Weight | 280 kg |
| Fuel Capacity | 14.7 litres (Including 4.9 litres reserve) |
| Length | 2104 mm |
| Width | 1205 mm |
| Height | 1174 mm |
| Towing Capacity | 385 kg |
| Carrier Capactiy | 60 kg |
