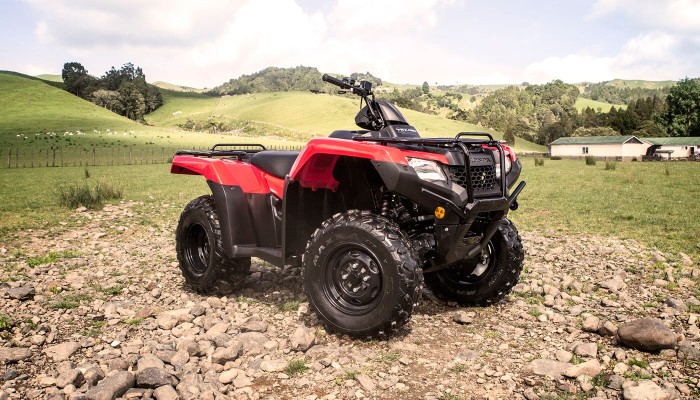

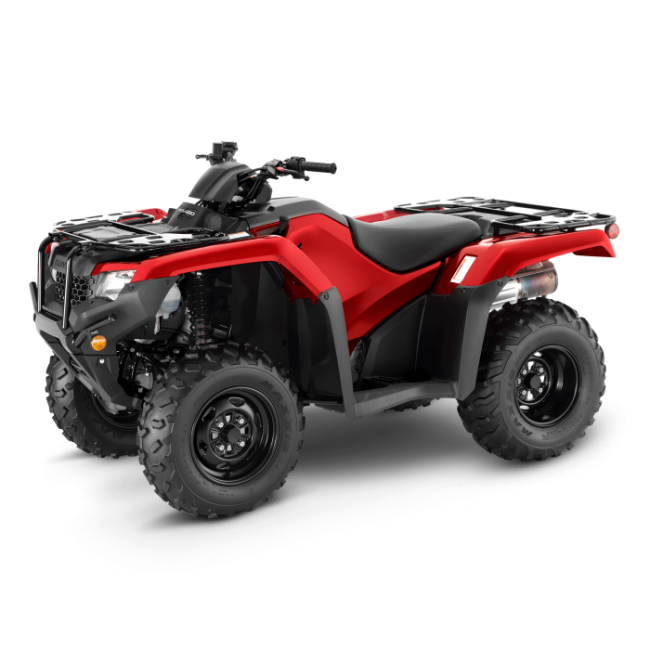

TRX420FM2
The TRX420FM2 is one of New Zealand’s favourite ATVs for a reason. It has all the great features of the FM1 model with the addition of power steering. The Electronic Power Steering (EPS) system uses the latest technology, incorporating ECU mapping for improved steering response and reduced low-speed steering effort for enhanced manoeuvrability.

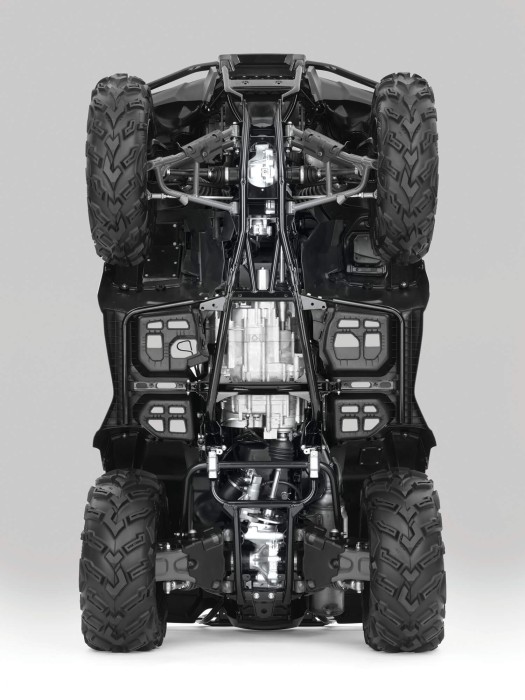

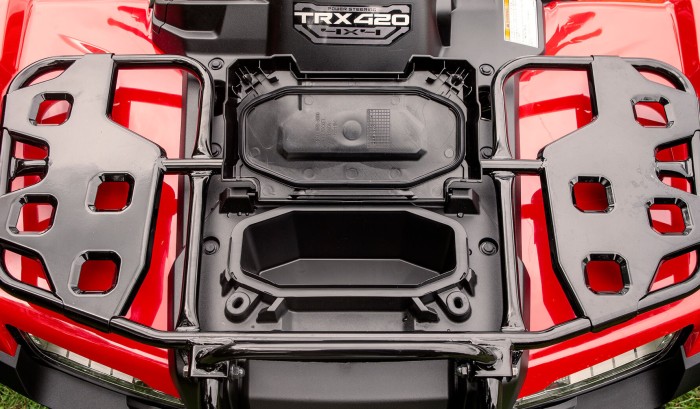

Elsewhere, the stiffness of the double-cradle steel frame allows for precise handling and 170mm of travel in both the front and rear suspension systems ensures a plush and controlled ride. The storage compartment on the front of the bike and carry racks provide more loading options. Guards extending the full length of the lower suspension arms provide full coverage of the driveshaft and outboard CV joints. This is one tough, economical, and capable ATV.
-
4 WD
-
ATV Electronic Power Steering
-
Longitudinally Mounted Engine
-
Solid Rear Axle
Features
Programmed Fuel Injection
Easy starting, impressive throttle response and great fuel economy are delivered by the latest version of Honda’s Programmed Fuel Injection (PGM-FI) system.
| Engine Type | Longitudinally mounted liquid-cooled OHV single-cylinder four-stroke |
| Engine Displacement | 420 cc |
| Bore and Stroke | 86.5mm x 71.5mm |
| Ignition | Full-transistorised with electronic advance |
| Fuel System | Programmed fuel injection (PGM-FI) - 34mm throttle body |
| Cylinders | 1 |
| Starter | Electric with auxiliary recoil |
| Final Drive | Direct front and rear driveshafts with torque sensing front differential |
| Transmission Type | Manual 5-speed with reverse |
| Suspension Front | Independent double-wishbone |
| Front Wheel Travel | 170 mm |
| Suspension Rear | Solid axle swingarm with single shock |
| Rear Wheel Travel | 170 mm |
| Brakes Front | Dual hydraulic 190mm discs |
| Brakes Rear | Single sealed 160mm mechanical drum |
| Tyres Size Front | 24 x 8 - 12 |
| Tyres Size Rear | 24 x 10 - 11 |
| Wheelbase | 1269 mm |
| Ground Clearance | 181 mm |
| Seat Height | 854 mm |
| Kerb Weight | 286 kg |
| Fuel Capacity | 14.7 litres (Including 4.9 litres reserve) |
| Length | 2104 mm |
| Width | 1205 mm |
| Height | 1174 mm |
| Towing Capacity | 385 kg |
| Carrier Capactiy | 30 kg |
