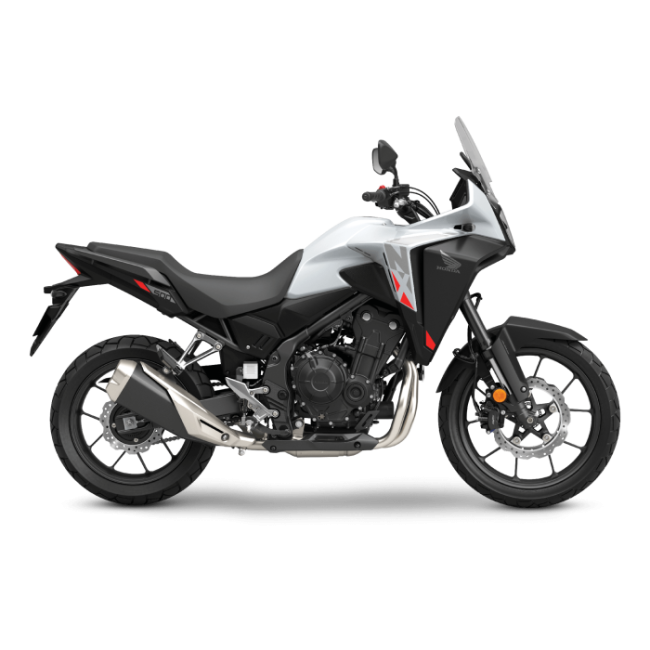

NX500

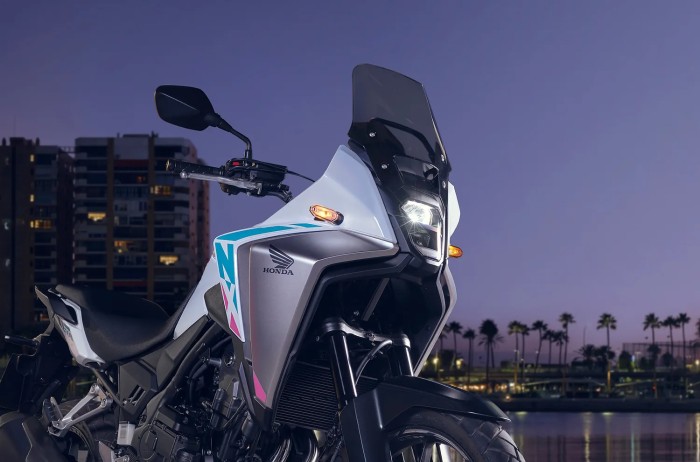

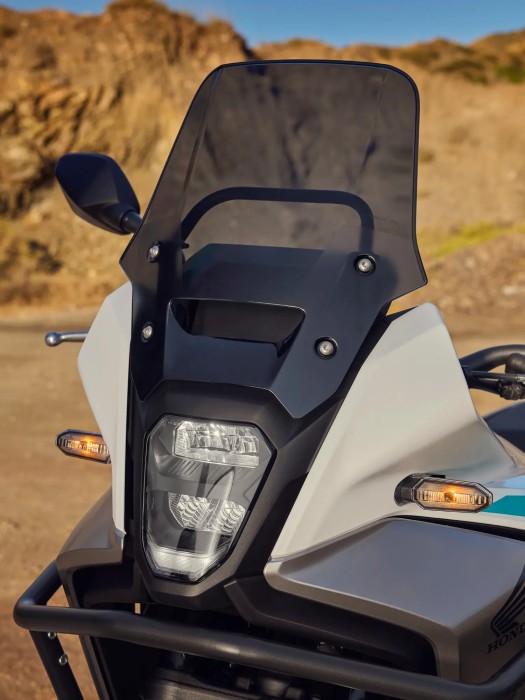

Where to? Your choice. The compact, versatile new NX500 offers perfect city agility and off-road ability. It’s comfortable too, with an aggressive, rally-style fairing and large screen shaped for wind protection. High specification technology includes 5-inch TFT screen. And its LAMS approved twin-cylinder engine delivers flexible – hugely enjoyable – performance with HSTC traction management. The adventure begins.
-
Adventure Ready
-

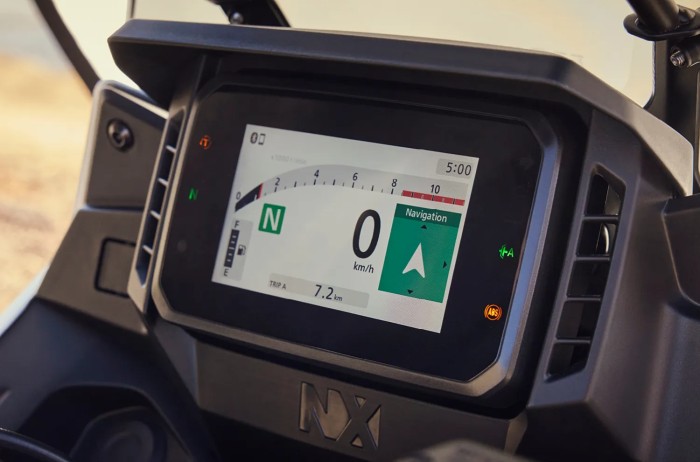

Colour TFT Display
-
Honda Selectable Torque Control (HSTC)
-
LAMS Approved
Features
Go Short. Go long.
Go where you choose. Effortlessly at home in the city but built for adventure, the rugged NX500 blends a tough off-road silhouette with modern off-road-inspired design. Long-travel suspension absorbs the urban rough and tumble just as it does gravel trails helped by new, lightweight wheels. The 17.7L fuel tank holds plenty of range. And a relaxed riding position – and natural control of wide handlebars – are matched to an aerodynamic package that neatly channels airflow.

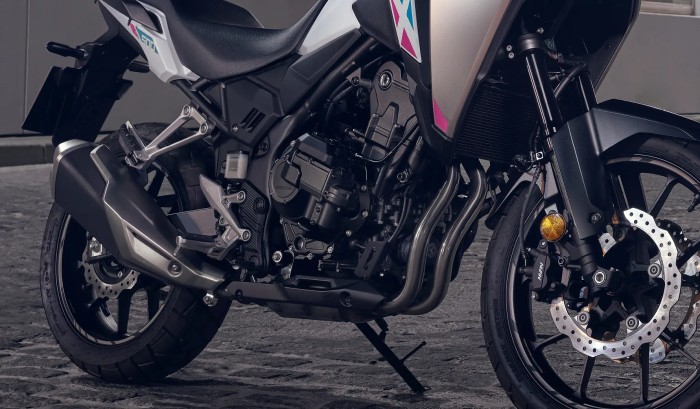

Engine Type | Liquid cooled DOHC parallel twin 4-stroke |
Engine Displacement | 471 cc |
Bore and Stroke | 67mm x 66.8mm |
Compression Ratio | 10.7:1 |
Ignition | Full-transistorized type |
Fuel System | Programmed fuel injection (PGM-FI) - 34mm throttle body |
Cylinders | 2 |
Starter | Electric |
Final Drive | Chain |
Transmission Type | Manual 6-speed |
Clutch | Wet multiplate, Assisted slipper clutch |
Suspension Front | Showa 41mm SFF-BP USD forks |
Suspension Rear | Pro-Link mono with 5 stage pre-load adjuster, Steel hollow cross swingarm |

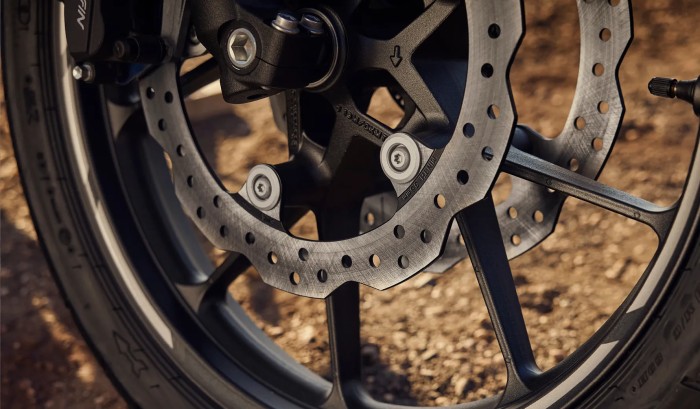

Brakes Front | Dual 296mm disc with two piston calipers |
Brakes Rear | Singe 240mm disc with single piston caliper |
Tyres Size Front | 110 / 80 - 19 |
Tyres Size Rear | 160 / 60 - 17 |
Rake Caster Angle | 27.5 degrees |
Wheelbase | 1445 mm |
Ground Clearance | 180 mm |
Seat Height | 830 mm |
Trail | 108 mm |
Kerb Weight | 196 kg |
Fuel Capacity | 17.5 litres |
Length | 2165 mm |
Width | 830 mm |
Height | 1415 mm |
Minimum Turning Radius | 2.4 m |
Instruments | 5-inch TFT display |
Headlight | LED |
Tail Light | LED |
Security System | HISS |
Emergency Stop Signal | Yes |
LAMS Approved | Yes |

Test Ride a Honda NX500
Ready to test out a road bike? Book your test ride online and experience a Honda for yourself. Just select your local dealer, fill in your details and you'll be riding in no time.

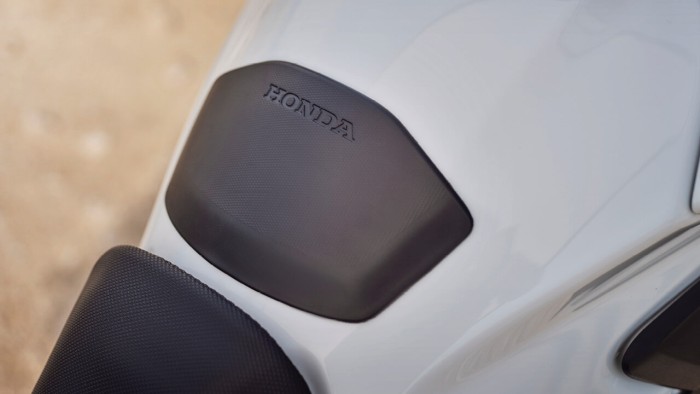

Honda Genuine Accessories
Browse the range of Genuine Honda Accessories to help you customise your new Honda to be the perfect fit for your lifestyle.
With three pre-bundled accessory packs to choose from including the adventure pack, comfort pack and travel pack there's alot of choice, or customise your NX500 the exact way you want it by building your own.
Honda Rider Finance
Honda proudly partners with UDC to offer a great range of finance options. Talk to your local Honda dealer today to find the best finance solution for your needs or apply online today. We can help you onto a new Honda, whether you are looking at a new ATV, Side by Side, Off-road bike, Road bike or Scooter.
