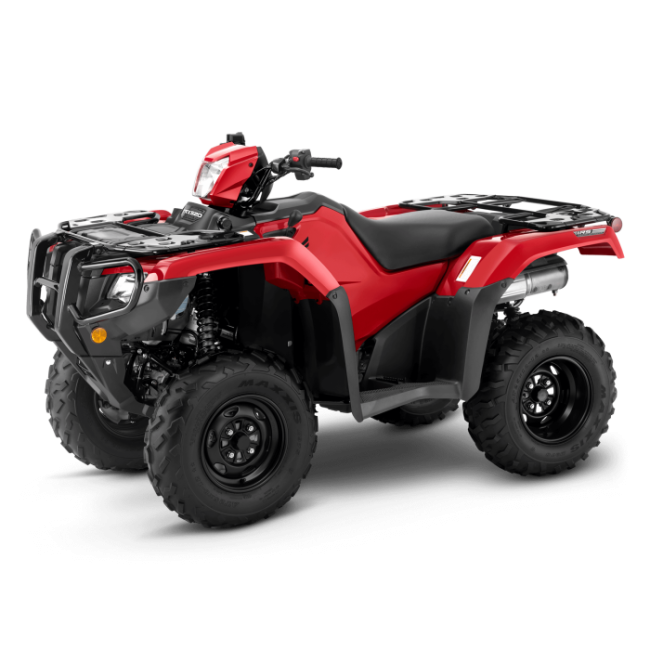

TRX520FA6

THE ATV FOR DEMANDING NZ FARMS

PATRIOT RED
OVERVIEW

TRX520FA6

The new 518cc TRX520FA6 offers all of the convenience and none of the hassle. The automatic dual-clutch transmission (DCT) features both automatic and manual electric shift options, a hi-low range sub transmission, and a new reverse switch to simplify the transition into and out of reverse. The improved engine RPM sensing system offers smoother and more seamless shifting between gears and there’s also an override capability to allow manual shifting even when in automatic mode - giving the rider a new level of control and making it possible to downshift on corner entry or upshift on descents. In the looks department, the FA6 sports a redesigned grill and front bumper for a more aggressive, stylised look, and it also comes with a handy new utility box and new rack.

BOOK A TEST RIDE

GALLERY

TRX520FA6

WHY CHOOSE A HONDA

WHY CHOOSE A HONDA


For over 40 years Honda has been a fixture on farms around New Zealand. With a range of products designed for New Zealand conditions you can rest assured that no matter the task your Honda is up for it.

Simply click on one of the buttons below to hear real stories from real Honda customers or check out just some of the great benefits of using a Honda on farm in New Zealand.

CUSTOMER STORIES HONDA BENEFITS

FEATURES

TAKE A CLOSER LOOK

/10

HONDA RIDER FINANCE

HONDA RIDER FINANCE


Honda proudly partners with UDC to offer a great range of finance options. Talk to your Honda dealer today to find the best finance solution for your needs. We can help finance you into your new Honda whether you are looking at a new ATV, Side by Side, Off-road Bike, Road Bike or Scooter.

FIND OUT MORE
SPECIFICATIONS

YOUR BIKE IN DETAIL

2020 TRX520FA6
Engine
Engine Type Liquid-cooled OHV  longitudinally mounted single-cylinder, 4 stroke
CC Rating 518cc
Bore and Stroke 96.0mm x 71.5mm
Ignition Full-transistorised with electronic advance
Carburetion Programmed Fuel Injection (PGM-FI) 36mm throttle body
Compression Ratio 9.5:1
Transmission
Starter Electric with auxiliary recoil standard
Final Drive Direct front and rear driveshafts w/ TraxLok® and locking front differential
Transmission Dual Clutch Automatic; 5-speed with reverse and High/Low
Wheels, Suspension & Brakes
Suspension Front Independent double wishbone - 185mm of travel
Suspension Rear Independent rear suspension - dual arm - 215mm of travel
Brakes Front Dual hydraulic - 190mm discs
Brakes Rear Single hydraulic - 170mm disc
Tyres Front 25 x 8 - 12
Tyres Rear 25 x 10 - 12
Dimensions & Weight
Wheelbase 1,294mm
Seat Height 922mm
GroundClearance 247mm
Kerb Weight 331kg
Fuel Capacity 14.7litres incl 4.9litres reserve
Dimensions 2185mm(L) x 1205mm(W) x 1237mm(H)
Carrier Capacity 45kg Front rack – 85kg Rear rack
Towing Capacity 600kg
