TRX520FM2

THE ATV FOR DEMANDING NZ FARMS

PATRIOT RED
OVERVIEW

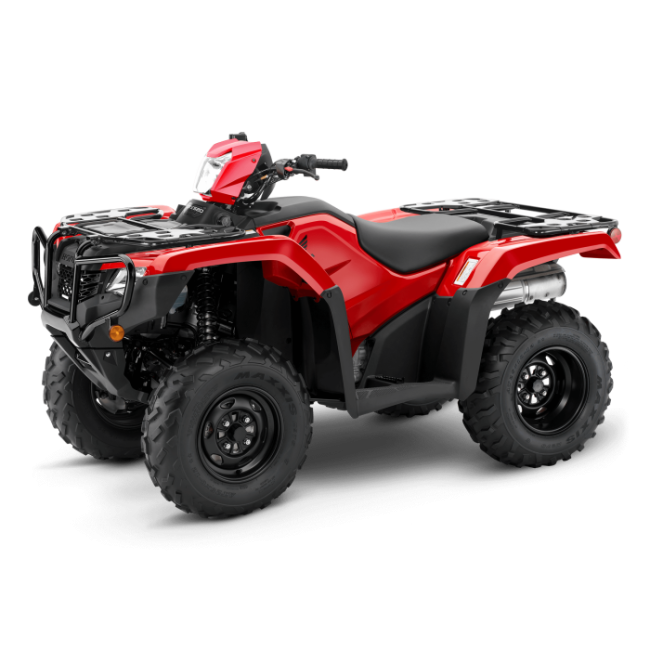

TRX520FM2

Equipped with a larger 518cc engine and a solid axle design unique to Honda, the all new TRX520FM2 is stronger, more powerful, and easier to use than its predecessor. Updated mapping provides power and torque where it’s used most - in the low end and midrange - to allow quicker acceleration, better ascending, and improved hauling and towing (375kg capacity), while Honda TraxLok allows you to move between 2WD and 4WD driving with just the flick of a switch. Elsewhere, the swingarm-style rear suspension is durable and easy to maintain, and towing is made more comfortable by moving tow hitch moving onto the swingarm. A bulletproof manual machine loved by Kiwis, the TRX520FM2 is NZ’s favourite ATV.

BOOK A TEST RIDE

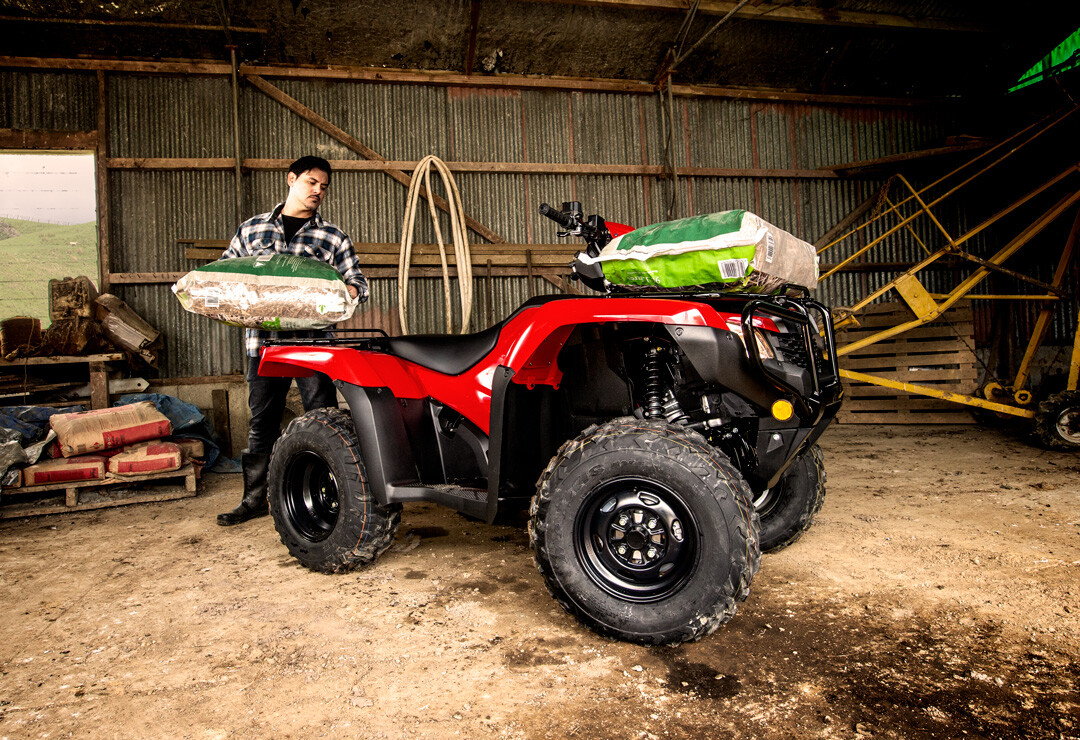

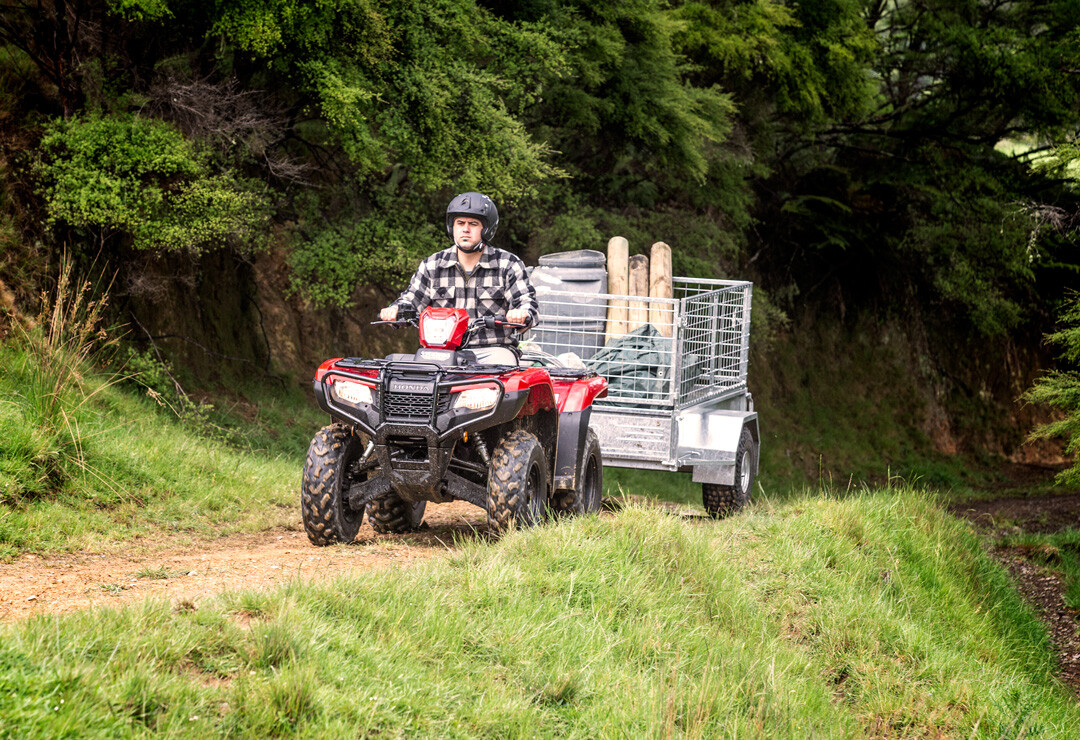

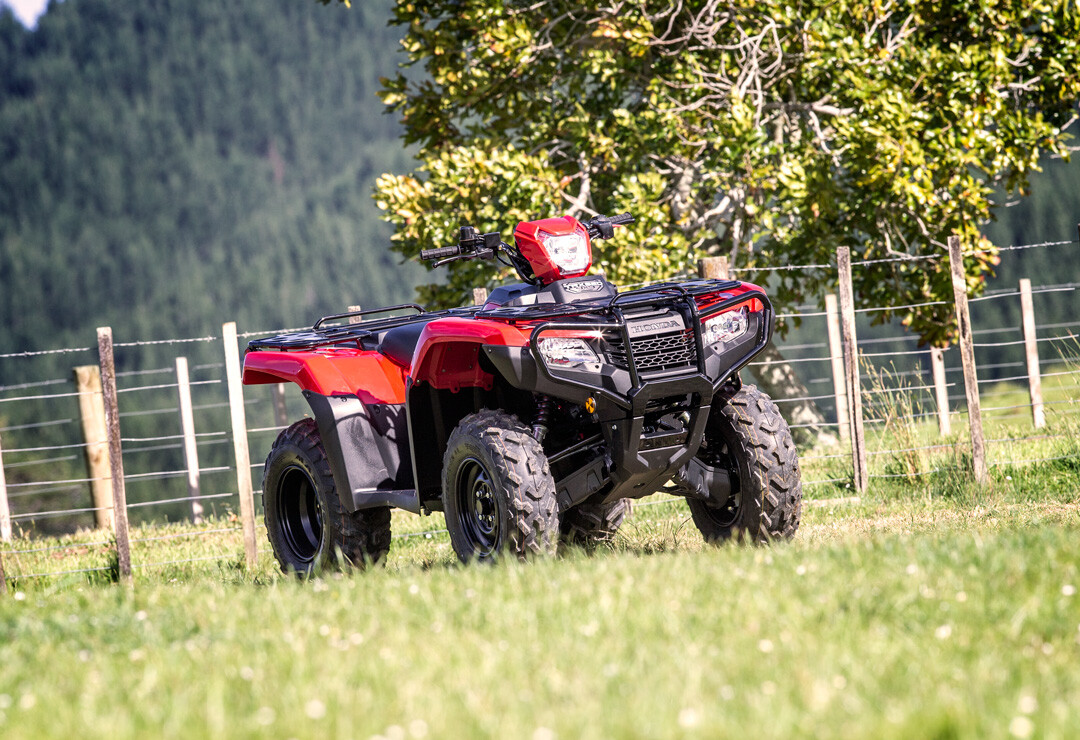

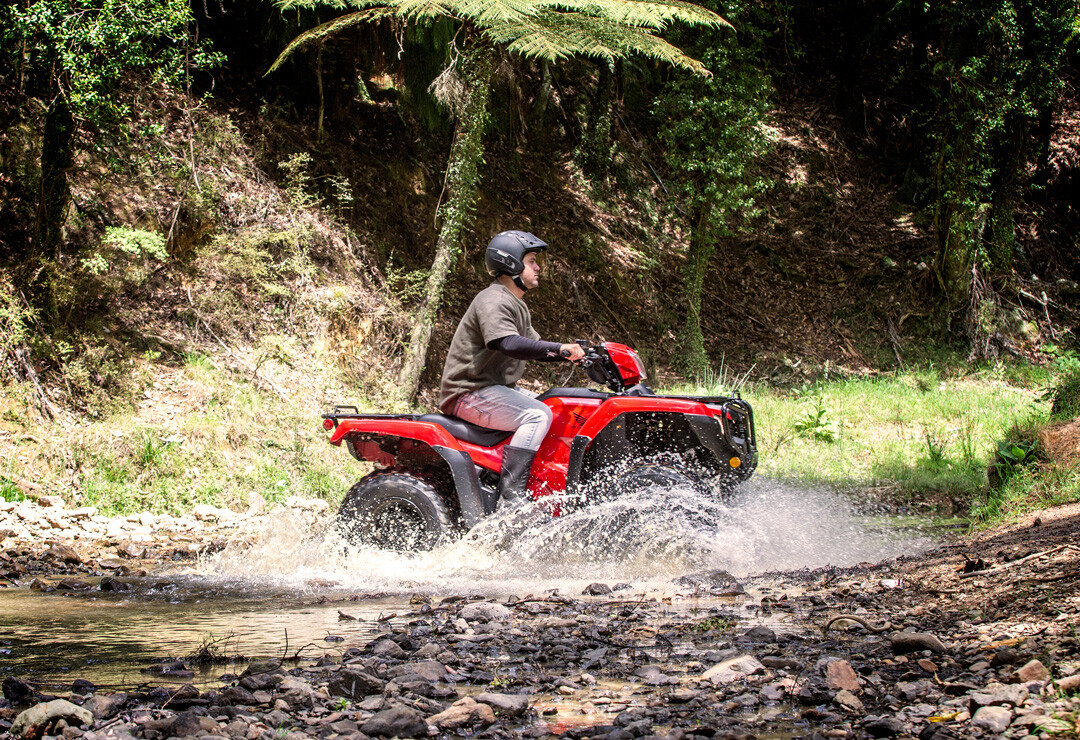

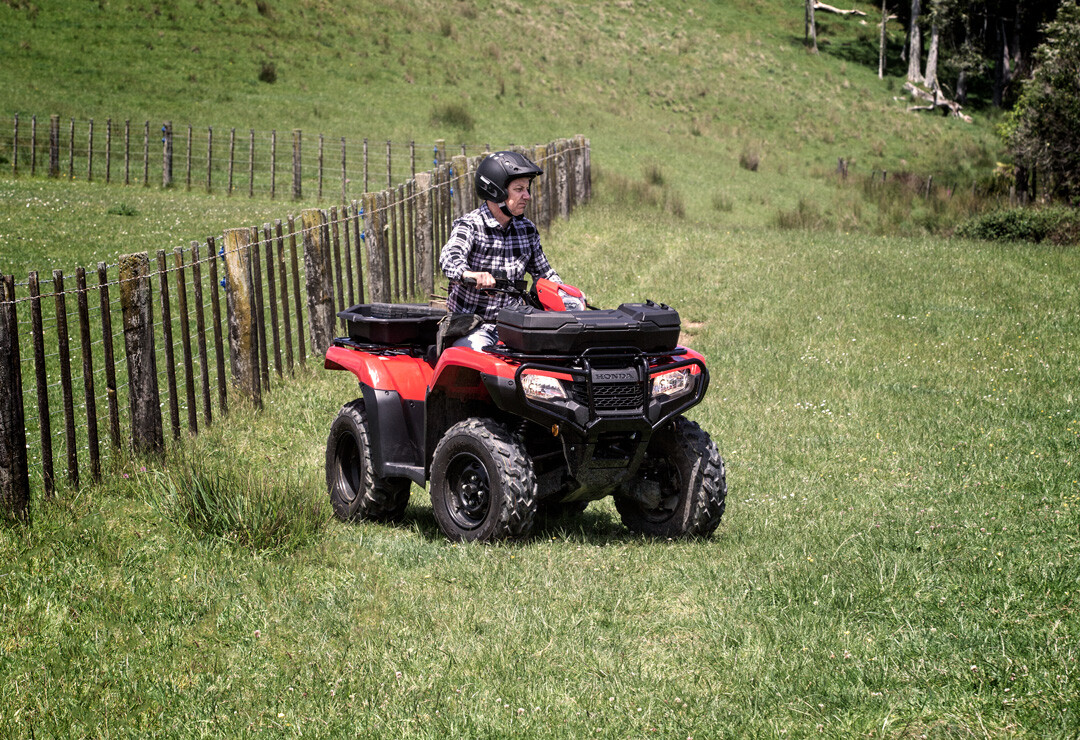

GALLERY

TRX520FM2

WHY CHOOSE A HONDA

WHY CHOOSE A HONDA


For over 40 years Honda has been a fixture on farms around New Zealand. With a range of products designed for New Zealand conditions you can rest assured that no matter the task your Honda is up for it.

Simply click on one of the buttons below to hear real stories from real Honda customers or check out just some of the great benefits of using a Honda on farm in New Zealand.

CUSTOMER STORIES HONDA BENEFITS

FEATURES

TAKE A CLOSER LOOK

/10

HONDA RIDER FINANCE

HONDA RIDER FINANCE


Honda proudly partners with UDC to offer a great range of finance options. Talk to your Honda dealer today to find the best finance solution for your needs. We can help finance you into your new Honda whether you are looking at a new ATV, Side by Side, Off-road Bike, Road Bike or Scooter.

FIND OUT MORE
SPECIFICATIONS

YOUR BIKE IN DETAIL

2020 TRX520FM2
Engine
Engine Type Liquid-cooled OHV longitudinally mounted single-cylinder, 4 stroke
CC Rating 518cc
Bore and Stroke 96.0mm x 71.5mm
Ignition Full-transistorised with electronic advance
Carburetion Programmed Fuel Injection (PGM-FI) 36mm throttle body
Compression Ratio 9.5:1
Transmission
Starter Electric with auxiliary recoil standard
Final Drive Direct front and rear driveshafts w/ TraxLok® and locking front differential
Transmission Manual 5-speed with reverse
Wheels, Suspension & Brakes
Suspension Front Independent double wishbone - 185mm of travel
Suspension Rear Swing arm with single shock - 185mm of travel
Brakes Front Dual hydraulic - 190mm discs
Brakes Rear Single sealed - 160mm mechanical drum
Tyres Front 25 x 8 - 12
Tyres Rear 25 x 10 - 12
Dimensions & Weight
Wheelbase 1,269mm
Seat Height 877mm
GroundClearance 190mm
Kerb Weight 297kg
Fuel Capacity 14.7liters incl 4.9litres reserve
Dimensions 2106mm(L) x 1205mm(W) x 1213mm(H)
Carrier Capacity 40kg Front rack – 80kg Rear rack
Towing Capacity 385kg
