PIONEER 1000-3P Forest
Next-Gen Pioneer

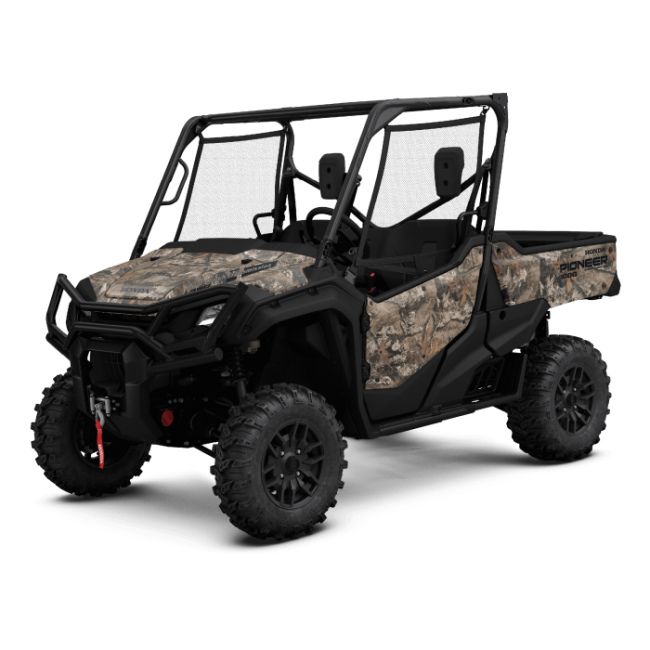

Pioneer 1000-3P Forest

The Pioneer 1000 takes everything we have learnt from our ATVs and side-by-sides and added to them. The Forest Edition also adds some awesome extras like a Warn winch, black alloy wheels, i-4WD, Camo decals and more.

A powerful 999cc twin engine, especially in the mid and top range, combined with lower gear ratios to deliver strong acceleration, versatility and performance. The towing capacity is a massive 1,134kg (with 454kg hauling) and there's added ground clearance and larger tyres. Fully-independent front and rear suspension with some of the longest travel of any multi-purpose side-by-side.

And let’s remember: this is a Honda, a name that’s long stood for quality and reliability. So you get class-leading power, performance and features, purpose-built by the best in the business.

  • i-4WD

    i-4WD

  • Independent Suspension

    Independent Suspension

  • Warn Winch

    Warn Winch

$36,794
Find a store near me

Choose your bike
Forest Edition Features
Forest Edition Features
The Forest Edition comes with a range of extras including i-4WD for smarter traction in slippery conditions, a Warn VRX 45 winch, a rear bed light and interior light, black aluminium wheels, and oversized front bumper and TreuTimber Atera Camo graphics.

Features

i-4WD
i-4WD

Our exclusive i-4WD system. Think “I” for “Intelligent,” because that’s exactly what it is. An industry-first brake-traction control system for side-by-sides, it simplifies operation, increases drivability and optimizes traction. Using proven, advanced technology from the Honda automotive division, you get the benefits associated with a locked front differential with none of the downsides. That means it maintains front-wheel traction even if one wheel wants to spin on ice or mud or if it’s in a hole. But at the same time, you get the lighter steering, better tracking at high speeds, tighter turning radius, and reduced kickback associated with unlocked front differentials.

LED Bed Light
LED Bed Light

Whether you're out on the farm before sunrise, or after sunset, our Pioneer 1000 Forest Edition features integrated LED bed lighting on both the left and right sides.

Fully-Automatic Six-Speed DCT Transmission
Fully-Automatic Six-Speed DCT Transmission

Drive the way you want, with the industry’s first and only all gear-driven six-speed Dual Clutch Transmission. Choose between manual mode or fully automatic. Plus, the addition of Sport Mode increases the fun, shifting at higher RPM for a spirited, full-performance driving experience.

Tilt/Dump Bed
Tilt/Dump Bed

With 454kgs of bed hauling and when it comes to dumping, we've made it easier than ever, with a hydraulic assist tilt bed lever that can be accessed from outside the vehicle, or right from the driver’s seat.

More Powerful 999cc Twin-Cylinder Engine
More Powerful 999cc Twin-Cylinder Engine

We've given the engine huge power in our entire Pioneer 1000 lineup, especially in the midrange and top end. And thanks to the lower gear ratios, you’ll feel quick acceleration and stellar overall performance. Using the same Unicam® cylinder head design found in our motocross bikes, the class-leading 999cc liquid-cooled inline twin is compact, while delivering the kind of horsepower and torque you’d expect from a flagship model.

Powerful Brakes
Powerful Brakes

The Pioneer’s uncompromising power helps take you further than ever before. The reliable disc brakes help you stop on a dime. Built to the same standard as you'd find in our autos, the four-wheel disc brakes help minimize debris build up, ensuring consistent performance and giving you confidence on the trail.

Independant Suspension Front & Rear
Independant Suspension Front & Rear

Dual A-arm suspension gives you 266mm of travel in the front and 254mm in the rear. Pair that with stellar ground clearance, and you maximize available traction and superior comfort maneuvering over terrain other side-by-sides would shy away from.

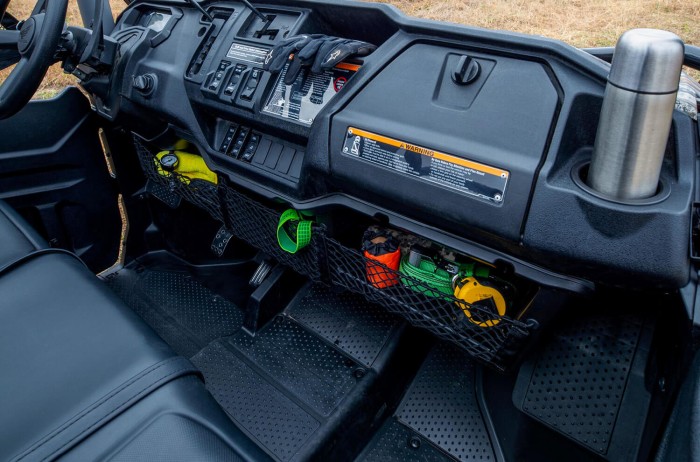

Updated Dashboard
Updated Dashboard

Updated dashboard offers better control at your fingertips, to select the right driving mode, control gears and switch between 2WD and 4WD. All the essential data is feed back to you via the easy to read LCD screen, and there's dual cup holders to bring the coffee along on the cold mornings.

Easy to Read Multi-function Dash
Easy to Read Multi-function Dash

The multi-function LCD dash display is large enough to host loads of information, in an easy-to-read way, like speed and fuel level. RPM and transmission mode. Fuel gauge, water temperature, trip information and more. It even includes a clock, so you’ll always know when it’s time for some fun.

Rubber Mounted Engine & Exhaust
Rubber Mounted Engine & Exhaust

Some of the most impressive Pioneer 1000 features are those you'll never see. In addition to the suspension and ground clearance, we rubber-mounted the engine and exhaust system to insulate the cabin against excessive vibration. So while you may not see this feature, it’s one you will definitely notice.

High/Low Sub transmission
High/Low Sub transmission

With a full 42-percent gear reduction between High and Low, you get the torque you need in all six gears. It comes in handy when driving over difficult terrain, scaling steep hills or towing heavy loads.

Turf Mode/2WD/4WD/Diff Lock
Turf Mode/2WD/4WD/Diff Lock

Don't tear up sensitive surfaces. Select Turf Mode. If you want to access as much traction as possible, put it in 4WD. Need maximum power at all four wheels? Lock the front and rear differentials. And the best part is, you can do it all with a shift of a single lever.

A Breath of Fresh Air

To get the most out of your engine, you need the best air going into it. That’s why we positioned the air intake up high under the hood. It helps ensure a clean air supply, even at deeper fording depths, and with a new viscous air filter element, you get increased performance and longer service intervals.

Warn VRX 45 Winch
Warn VRX 45 Winch
This is a huge upgrade and standard equipment on our Pioneer 1000 Forest. The winch is installed at the factory, and is built right into the Pioneer’s chassis, not added on as an accessory. With a 2000+ kg capacity and spooled with steel cable, you'll be ready to pull your buddy out when he gets stuck!
Specifications
Engine TypeLongitudinally mounted liquid-cooled OHC Unicam parallel-twin four-stroke
Engine Displacement999 cc
Bore and Stroke92.0mm x 75.15mm
Compression Ratio10:1
IgnitionFull-transistorized type with electronic advance
Fuel SystemProgrammed fuel injection (PGM-FI) - 44mm throttle body
Cylinders2
Valves8
StarterElectric
GearboxSteel gears
Final DriveDirect front and rear driveshafts
Transmission Type6-Speed Automatic Dual Clutch Transmission (DCT)
Drive ModesTraxLok 2WD/4WD, Diff-lock, Turf Mode & High/Low Sub Transmission
Suspension FrontIndependent double-wishbone
Front Wheel Travel269 mm
Suspension RearIndependent double-wishbone
Rear Wheel Travel254 mm
Brakes FrontDual hydraulic 210mm discs
Brakes RearDual hydraulic 210mm discs
Tyres Size Front27 x 9 - 14
Tyres Size Rear27 x 11 - 14
Steering TypeElectric power steering with return to centre
Adjustable SteeringTilting steering wheel
Wheelbase2037 mm
Ground Clearance325 mm
Seating Capacity3
Kerb Weight761 kg (Includes all standard equipment, required fluids and full tank of fuel.)
Fuel Capacity29.9 litres (Including 6.4 litres reserve)
Length3058 mm
Width1600 mm
Height1946 mm
Towing Capacity1134 kg
Minimum Turning Radius4207 m
Rear Carrier Capacity454 kg (With hydraulic assist lever (accessible from cab or outside))
Pioneer 1000-3P Forest

Test Ride a Pioneer

Ready to test out a Pioneer? Book your test ride online and experience a Honda for yourself. Just select your local dealer, fill in your details and you'll be riding in no time.
