BETTER. NOT BIGGER.

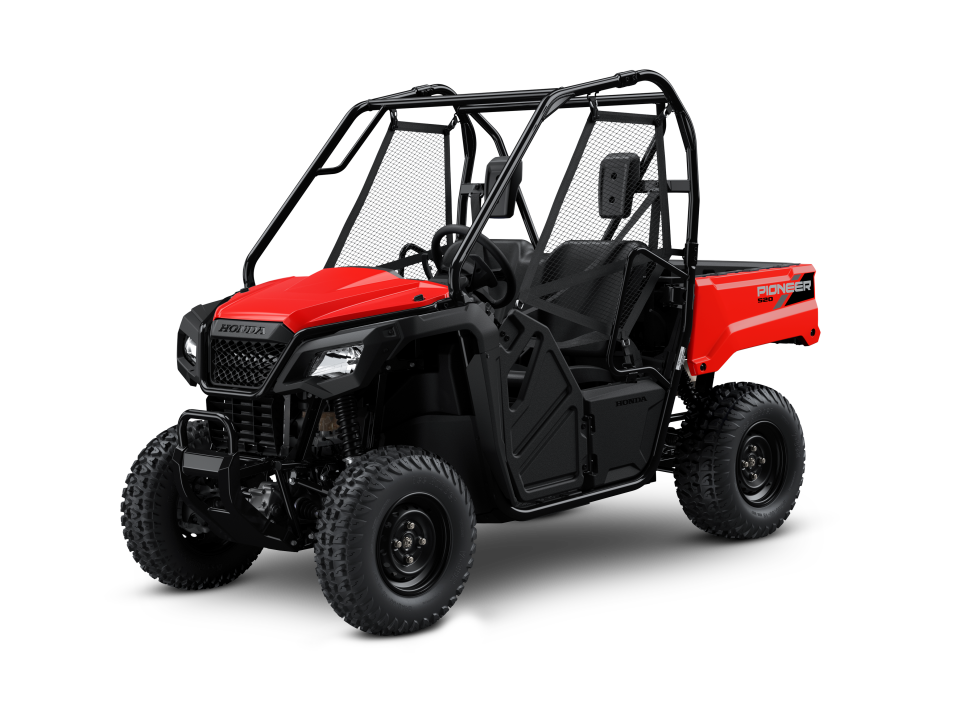

For over 45 years, Honda bikes have been proven performers on Kiwi farms, no matter the weather or terrain. The Pioneer 520 takes performance to the next level and is packed with features to help make life on the farm easier and safer.

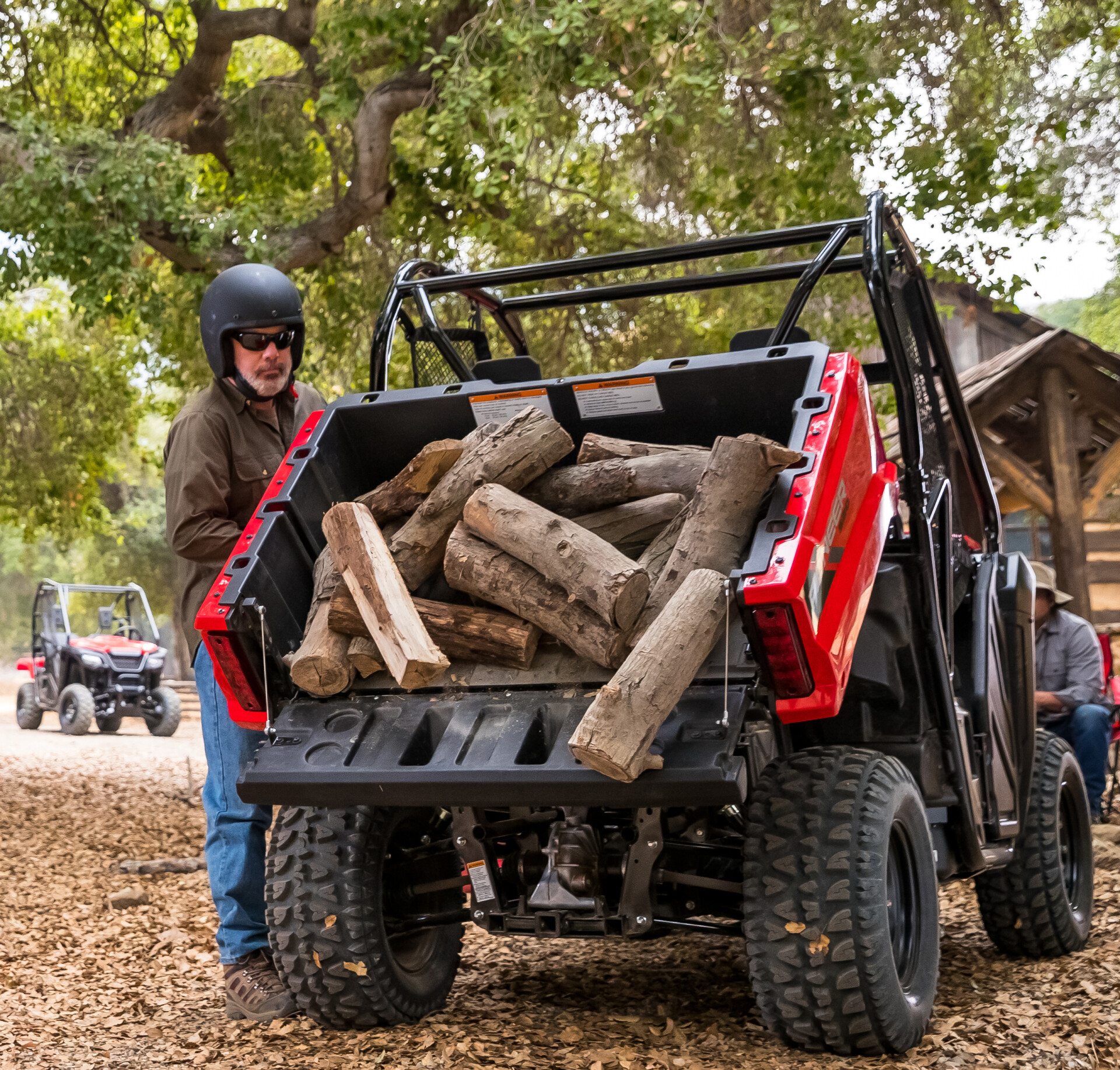

The Pioneer 520’s, powerful 518cc engine with fuel injection for great cold weather and high altitude performance. The strut-assist tilt utility bed makes dumping cargo a breeze.
You also get features like our Honda automatic transmission using rugged, steel gears with AT/MT modes. Selectable Traxlok® two- or four-wheel drive for lighter steering or for more traction and the longitudinally mounted engine to put more grunt to the ground.

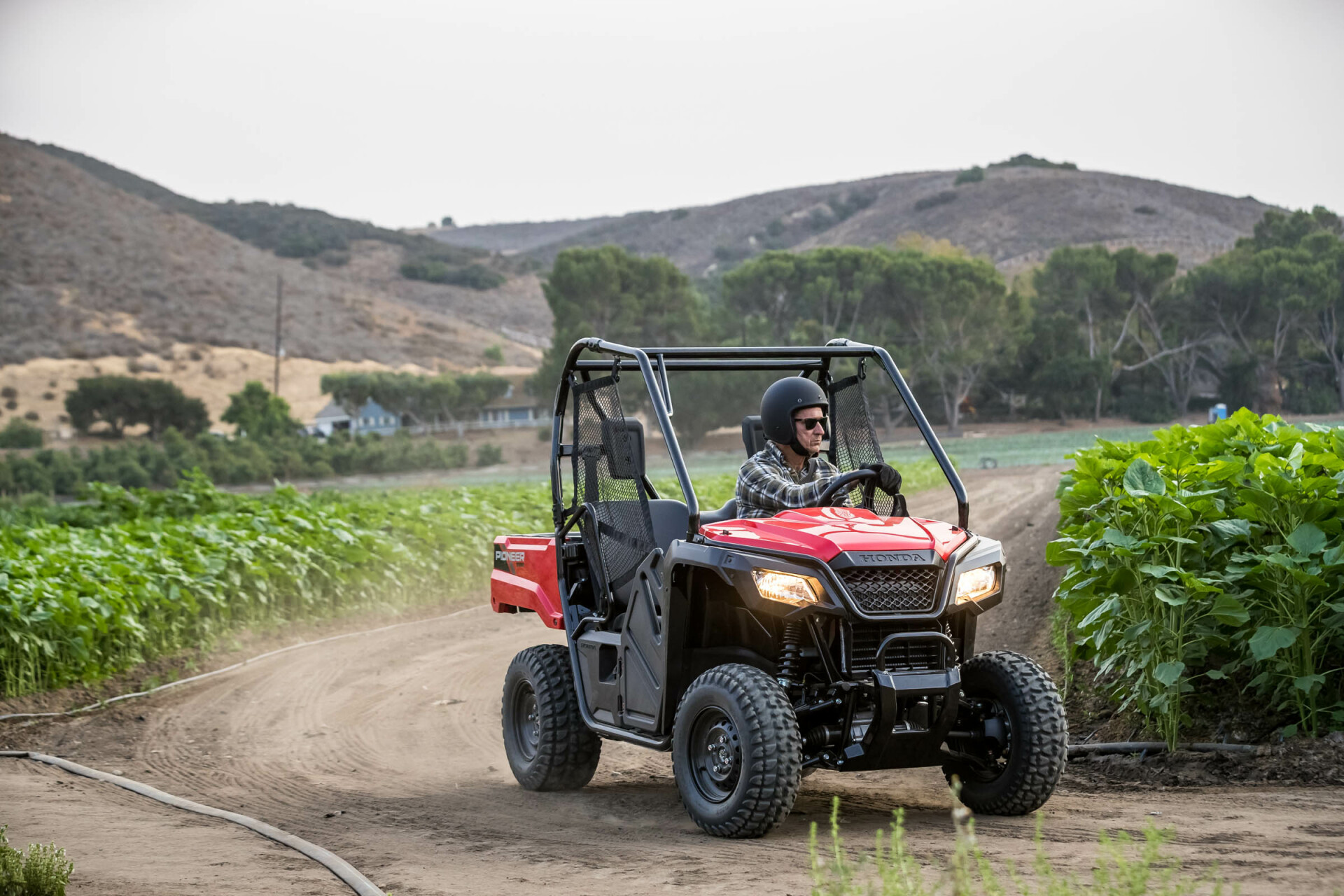

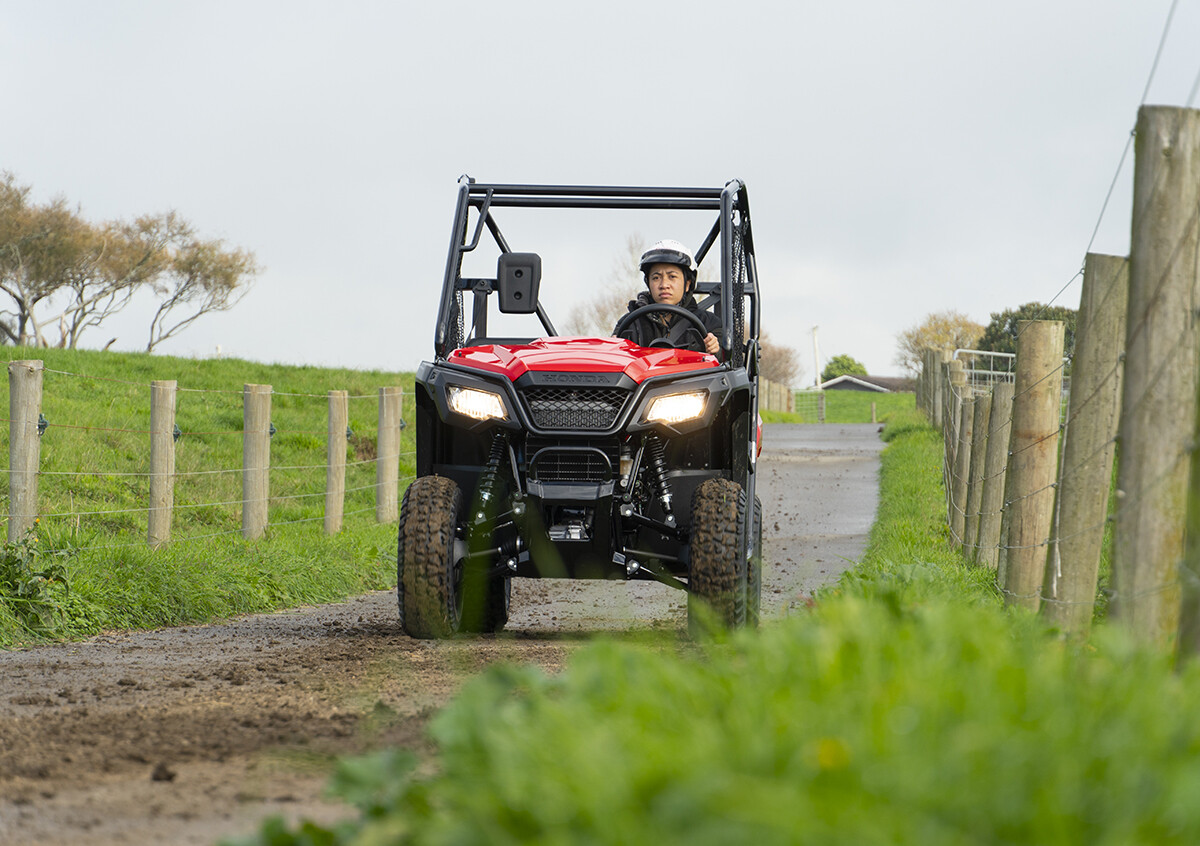

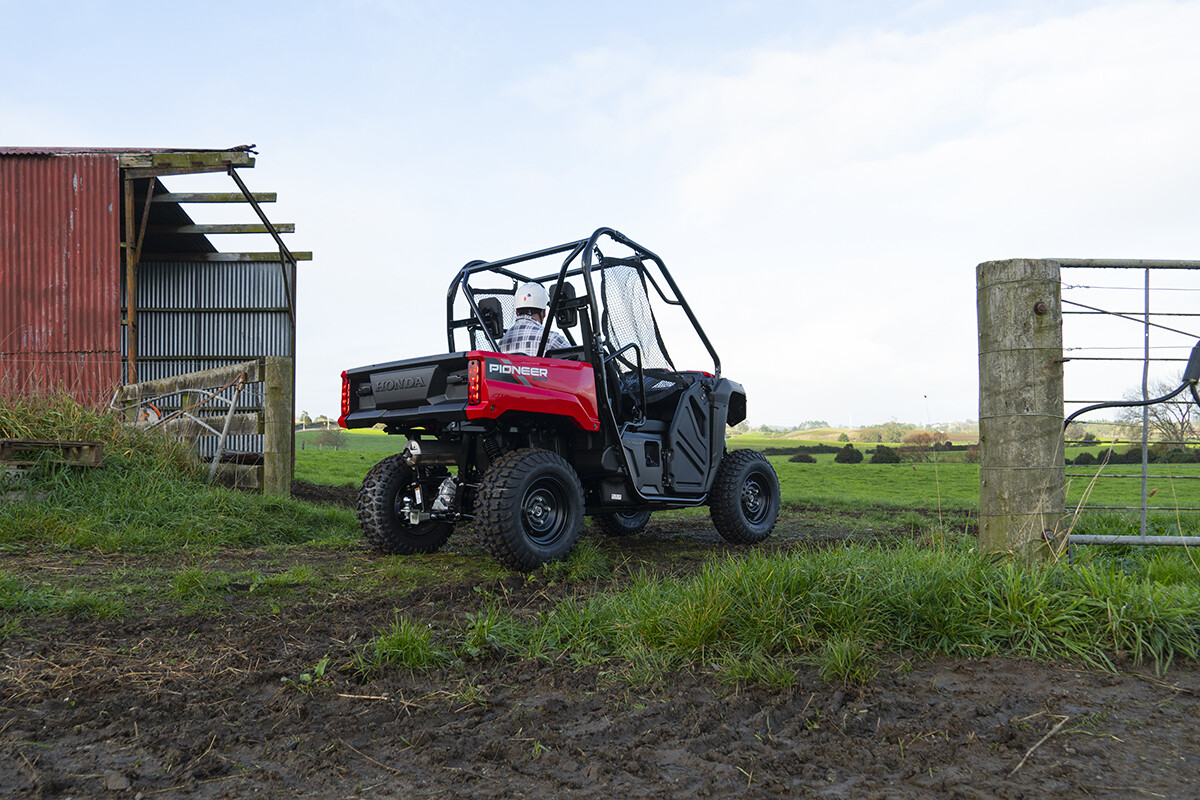

The narrow width lets you and a passenger go where other side-by-sides can’t, on width-restricted trails and farm tracks. It also allows easy transport and storage.
The Pioneer 520 is your go-to side-by-side that punches well above its size and weight on the farm.
TAKE A CLOSER LOOK
HONDA RIDER FINANCE
Honda proudly partners with UDC to offer a great range of finance options. Talk to your Honda dealer today to find the best finance solution for your needs. We can help finance you into your new Honda whether you are looking at a new ATV, Side by Side, Off-road Bike, Road Bike or Scooter.
YOUR BIKE IN DETAIL
|Engine Type||Liquid cooled single cylinder four-stroke|
|Bore and Stroke||96.0mm x 71.5mm|
|Ignition||Full-transistorized type with electronic advance|
|Fuel System||Electronic fuel injection (PGM-FI), 36mm throttle body|
|Gearbox||Five-speed automatic transmission with AT/MT modes with paddle shifting and reverse. Two drive modes include 2WD and 4WD|
|Final Drive||Direct front and rear driveshafts|
|Suspension Front||Independent double-wishbone; 147mm of travel|
|Suspension Rear||Independent double-wishbone with preload adjustablility; 150mm of travel|
|Brakes Front||Dual 200mm hydraulic disc|
|Brakes Rear||170mm hydraulic disc|
|Tyres Front||24 x 8-12|
|Tyres Rear||24 x 10-12|
|Fuel Capacity||15.5 Litres|
|Dimensions||2667mm (L) x 1270mm (W) x 1808mm (H)|
PIONEER 520-2 ACCESSORY RANGE
Made with the same exact standards as every Honda part, build your Pioneer with high-quality Honda Genuine Accessories which have been thoroughly safety checked for your peace of mind. All Honda Pioneer Accessories also carry a three month warranty so you can rest assured when you buy genuine.
Outstanding weather protection and utilising the Honda Tool-Less clamp system for quick installation, quick removal. Compatible with all Honda Accessory Windscreens and includes mount points for Honda Accessory Light Bar.
Constructed of optical grade polycarbonate .Non-cracking, non-yellowing material, excellent impact resistance. Tips out allowing air flow to driver and passenger and is fully adjustable. (If a wiper is to be installed then please use our Glass windscreen).
FABRIC REAR PANEL
Made of durable fabric for superior performance in harsh conditions. UV fade resistant, water repellent, mould/mildew and abrasion resistant. Window zips open and rolls up increasing airflow through the cab.
FABRIC DOORS BLACK
Aluminium CNC formed door frames are lightweight. UV fade resistant, water repellent, mould/mildew and abrasion resistant. Doubled zippered vinyl windows roll down increasing airflow through the cab. Includes right and left doors.
*Pictured colour not available in NZ
SIDE MIRROR KIT
Increased driver visibility. Utilizes Honda tool-less clamp system for quick installation and removal. Adjustable positioning, includes right and left mirrors. Not compatible with Honda fabric door or hard door accessories.
Allows installation of 1-7/8” or 2” Hitch ball.
1-7/8" hitch ball - includes nut and lock washer.
2,500lb. of pulling force. Features an all-metal 3-stage planetary geartrain. A patented disc brake for excellent control and short throw clutch. Efficient electrical system for less battery drain. Requires Honda Accessory Winch Mount Kit. Limited lifetime warranty.
Quick installation and easy removal. Requires installation of accessory sub harness and horn kit harness.
BACK UP ALARM
Automatically activates a loud beep whenever the unit is put into reverse. Requires installation of accessory sub harness and back up alarm harness.
LED LIGHT BAR
Stylish 14” light bar features 3-watt Cree LED lights, providing exceptional performance with minimal battery draw. 1P68 rated -waterproof, submersible. Requires installation of accessory sub harness and Light bar harness.
Panoramic mirror with excellent visibility. *Secure and rigid mount. *Uses Honda Tool-Less clamp system. *Quick installation and removal.
UTILITY BASKET (35L)
9.3 Gallon (35 Liter) basket increases cargo space and allows easy access to equipment and tools. *Impact-resistant polypropylene is strong and durable. *Honda Pro-Connect™ attachment system for quick installation and removal. *Conveniently mounts to factory rack. *SXS520 requires Bed Rack for installation.
* Dealer installation charges may apply.
CARGO BOX (35L)
Durable 9.3 Gallon (35L) Cargo Box is lockable and weather sealed for secure, clean and dry storage. *4 tie-down points on the lid provide additional carrying area. *Honda Pro-Connect attachment system for quick installation and removal. Conveniently mounts to rack. *Requires Bed Rack for installation.
