OVERVIEW

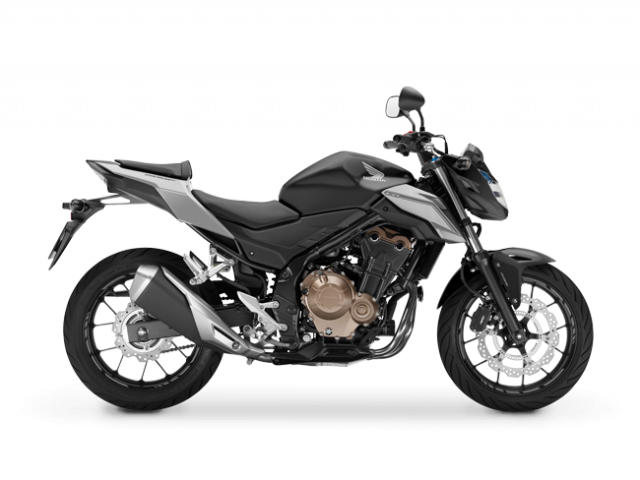

CB500F
The CB500F has evolved for this year and now wears aggressive bodywork to create a more muscular wedge-like shape. Tapered handlebars add further riding feel. New LCD instruments feature a Shift Up and Gear Position function and the indicators are now LED, to match the rest of the lighting.
And while the CB500F’s engine maintains the 35kW it now makes 4% more power and torque between 3-7,000rpm, thanks to revisions to the inlet, exhaust and valve timing. The new dual-exit exhaust muffler emits an enhanced exhaust note; the engine now also features an assist/slipper clutch.
A new rear single-tube shock absorber delivers consistent damping performance and improved control.
FEATURES
TAKE A CLOSER LOOK
SPECIFICATIONS
YOUR BIKE IN DETAIL
Engine
| Engine Type | Liquid cooled DOHC Parallel Twin |
| CC Rating | 471cc |
| Bore and Stroke | 67mm x 66.8mm |
| Ignition | Full-transistorized type |
| Carburetion | PGM-FI, Electronic Fuel Injection |
| Compression Ratio | 10.7:1 |
Transmission
| Starter | Electric |
| Gearbox | 6-speed |
| Final Drive | Chain |
Wheels, Suspension & Brakes
| Suspension Front | Conventional Telescopic, 41mm, Pre load adjustable |
| Suspension Rear | Pro-link mono with 9 stage Pre load adjuster |
| Brakes Front | Single two-piston caliper w/ 320mm petal-style disc: ABS |
| Brakes Rear | Single one-piston caliper w/ 240mm petal-style disc: ABS |
| Tyres Front | 120/70 - 17 |
| Tyres Rear | 160/60 - 17 |
Dimensions & Weight
| Wheelbase | 1,410mm |
| Seat Height | 785mm |
| GroundClearance | 145mm |
| Kerb Weight | 190 kg |
| Fuel Capacity | 17.1 litres |
| Dimensions | 2080mm(L) x 790mm(W) x 1060mm(H) |
